Description

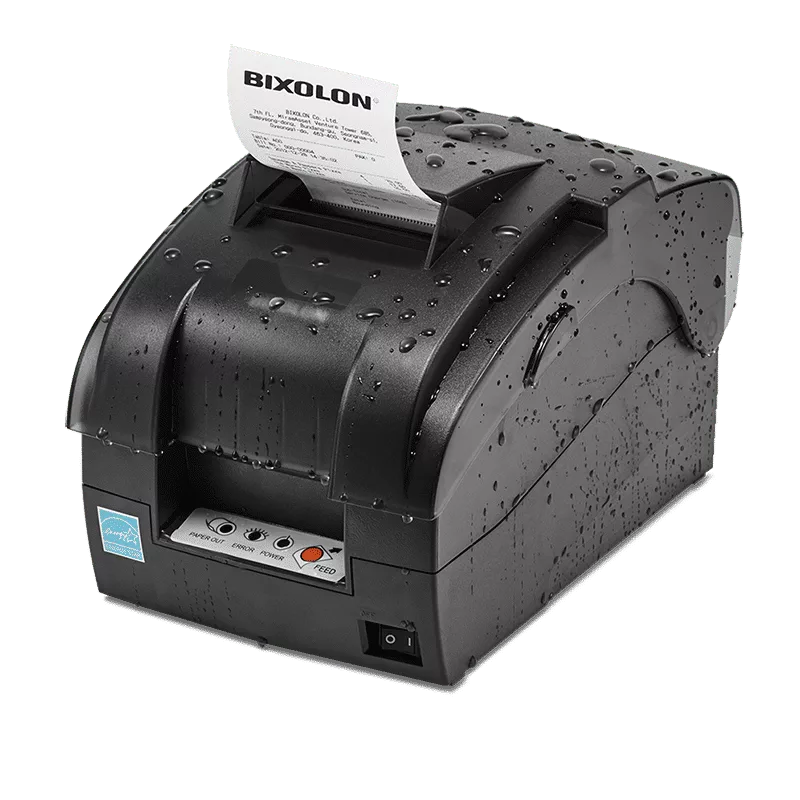

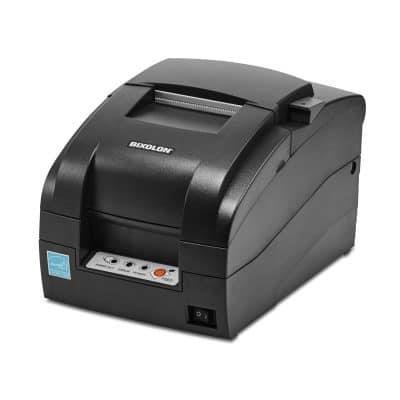

Bixolon SRP-275III 3” serial dot-matrix receipt printer suited to a range of applications, from kitchen printing, to end-of-day reporting, customer receipting, service reports and can produce simultaneous multiple copies.

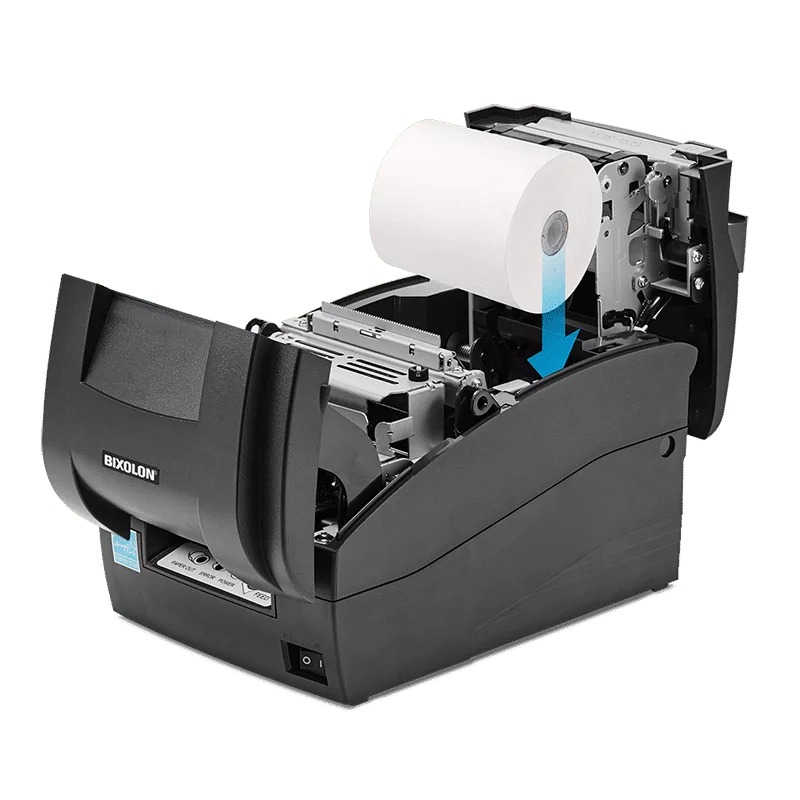

Featuring an ergonomic easy clean design and easy print paper loading, the SRP-275III has the option of either Tear-Bar or Auto-cutter. Boasting three interface options including USB V2.0 FS + Serial + Ethernet*, USB V2.0 FS + Parallel or USB V2.0 FS + Serial (*DHCP enabled).
Offering Intelligent Logic Seeking and Bi-Directional Print Technology, the SRP-275III is fast and quiet and has the ability to print multiple copies with reliability of up to 18 million lines. Alongside a Virtual Memory Switch Manager (VMSM) allowing the printer settings and the default language to be changed easily. The SRP-275III also features an easy logo/firmware download program to efficiently update receipt designs with company logos.
| Print Characteristics | |
| Print Method | “9 PinSerial Dot Matrix” |
| Print Speed | Up to 5.1 lps (at 40 colums) |
| Print Resolution | “80 dpi (horizontal)144 dpi (vertical)” |
| Print Width | Up to 63.5 mm |
| Sensor | Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark |
| Media Characteristics | |
| Media Type | Receipt |
| Media Width | 76.5 mm |
| Media Roll Diameter | Up to 83 mm |
| Media Thickness | 0.06 ~ 0.085 mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| “Dimensions(WxDxH)” | “160 x 239 x 157 mm(6.29 x 9.40 x 6.18 inch)” |
| Weight | “A: 2.4 kg (5.29 lbs.)C: 2.5 kg (5.51 lbs.)” |
| Electrical | EnergyStar Certified, External Power Supply Housed Internally (Adaptor 24V/2.5A), 50/60Hz |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | – |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 64 Kbytes |
| User Define Buffer | 64 Kbytes |
| Interface | “‚ë† USB V2.0 FS + Serial + Ethernet* ‚ë° USB V2.0 FS + Parallel ‚ë¢ USB V2.0 FS + Serial* DHCP enabled” |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40‚ÑÉ (32 ~ 104‚Ñâ)Storage: -20 ~ 60‚ÑÉ (-4 ~ 140‚Ñâ)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | 300 Million Dots/Wire |
| Auto Cutter | 1.5 Million Cuts |
| *** Specified Paper | – |
| Software | |
| Emulation | BXL / POS |
| Driver/Utility | “Windows DriverOPOS/JPOS DriverLinux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility Program “ |
| SDK/Plugin | “Android/iOS/Windows SDKLinux SDKChrome SDK” |
| Application | mPrint Server (Windows, iOS) |
| MDM(Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Character Size | “Font A: 9×9 Font B: 7x9KOR: 17×9 CHN: 16×16” |
| Characters Per Line | “Font A: 35 Font B: 40KOR: 20 CHN: 22” |
| Character Sets | “Alphanumeric: 95Extended Graphics: 128×27 pageInternational: 48” |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | |
| Accessories | |
| Standard | |
| Optional | “Wall Mount, Splash Proof Cover,Ribbon Cartridge,B-Melodist,External Buzzer,USB A-B Cable 1.8m” |
