Description

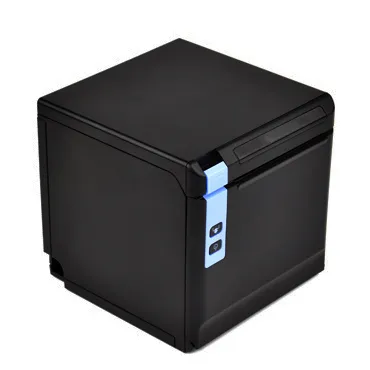

The HPRT POS80H is a 3″ thermal receipt printer. Distinctive cube design, the HPRT POS80H has a small footprint. Nevertheless it performs equal to or better than competing 3″ printers.
The HPRT POS80H Combi comes with USB, Serial, Ethernet interfaces as standard. Compact yet solid, it incorporates user friendly features such as anti-jam technology, a water-resistant surface and drop-in paper loading.
Utility available for IOS, Windows and Android for printer configuration.
- Interfaces USB, Serial, Ethernet.
- High Print Speed at 260mm/Second.
- Up to 80mm Wide Receipt.
- Support a Variety of Barcodes Including QR Codes.
- Wall Mount Option with Display Pivot.
- Low Power Consumption & Paper Saving.
- Tool Free Cabinet for Easy Assembly & Disassembly.
- Optional Kitchen Bell Feature.
- Stores/Prints User Defined Graphic Logos, Coupons or Advertising Messages.
| Printing | Print Method | Direct Thermal | |
| Resolution | 203 dpi (8 dots/mm) | ||
| Print Speed | Max. 260 mm/s | ||
| Print Width | Max. 80 mm | ||
| Interface | Standard | USB Type B, Serial Port, Ethernet | |
| Option | Bluetooth, Wi-Fi | ||
| Page Mode | Support | ||
| Memory | RAM | 4 MB | |
| Flash | 4 MB | ||
| Programming Language | ESC/POS | ||
| Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets | ||
| Barcode | Linear Barcodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 | |
| 2D Barcodes | PDF417, QR code | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB) | ||
| Sensors | Standard | Paper out Detector, Head up Detector, Paper near end sensors (Dual) | |
| Option | Black Mark Detector | ||
| LED Indicator | Power | Blue | |
| Paper | Orange | ||
| Error | Red | ||
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V, 2.5A | ||
| Paper | Paper Type | Thermal Receipt Paper | |
| Paper Width | 58 mm/80 mm | ||
| Paper Thickness | 0.056 mm ~ 0.13 mm | ||
| Roll Paper
Diameter |
Max. Φ83 mm (O.D.) | ||
| Paper Load | Front or Top paper loading | ||
| Paper Cut | Partial cut or Full cut | ||
| Environment | Operating | 0°C ~ 40°C, 20% ~ 85% R.H, no-condensation | |
| Storage | -20°C ~ 70°C, 5% ~ 95% R.H, no-condensation | ||
| Physical Characteristics | Dimensions | 137.3(L)×132(W)×130.5(H) mm | |
| Weight | 1.35 kg | ||
| Options and Accessories | USB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide | ||
| Reliability | TPH | 150 km | |
| Cutter | 2 million cuts | ||
| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | |
| SDK | WinCE, Win Mobile, Android, iOS | ||
